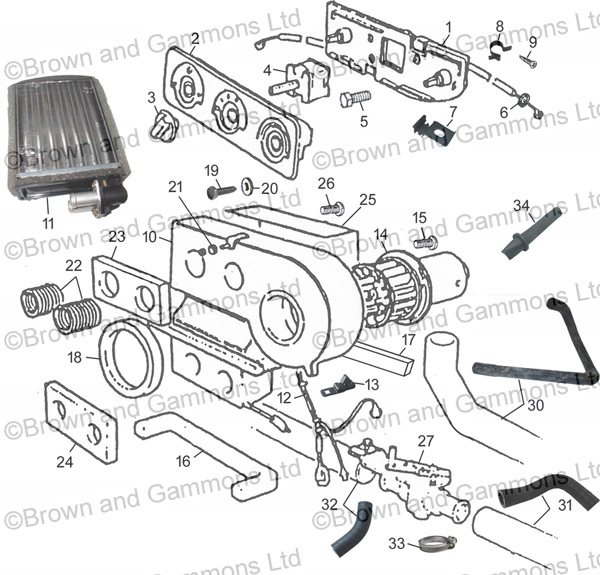

Heating and Hoses

Item

Description

Action

MGRV8 Heater control mechanism

Product Code: ZKC5121

£234.00

£195.00 ex. VAT

each x

LIGHTBOX - HEATER CONTROL - NLA

Product Code: ZKC5114

KNOB HEATER CONTROL RV8 - NLA

Product Code: ZKC5120

SWITCH HEATER RV8

Product Code: EEP116

£5.17

£4.31 ex. VAT

each x

SCREW - CONTROLS TO FASCIA

Product Code: AFU1349

USE RFN303

Product Code: 14A7033

Has been superseded by

Grommet

Product Code: RFN303

£0.86

£0.72 ex. VAT

each x

Grommet

Product Code: RFN303

Control cable

£0.86

£0.72 ex. VAT

each x

CLIP CABLE RV8

Product Code: ZKC5142

Control cable to tunnel

£0.90

£0.75 ex. VAT

each x

LO-CUT-CONTROL CABLE CLIP TO TUNNEL

Product Code: AFU1926

SCREW - SPEAKER

Product Code: AB608065

Control cable clip to tunnel

HEATER ASSEMBLY (LESS AIR CON)

Product Code: ZKC5108

To (V)000640 one rear upper fixing

£594.00

£495.00 ex. VAT

each x

HEATER ASSEMBLY (LESS AIR CON)

Product Code: ZKC6917

(V)000641 - 0009671 one rear upper fixing

HEATER ASSY AIR CON RV8

Product Code: ZKC6922

One rear upper fixing

£420.00

£350.00 ex. VAT

each x

HEATER ASSEMBLY (LESS AIR CON)

Product Code: ZKC6940

(V)000971 on two rear upper fixings

HEATER ASSEMBLY (AIR CON)

Product Code: ZKC6941

Two rear upper fixings

MATRIX HEATER

Product Code: JEF10005

£205.92

£171.60 ex. VAT

each x

HARNESS - BLOWER

Product Code: ZKC5131

£31.20

£26.00 ex. VAT

each x

CLIP - FAN CONNECTOR

Product Code: YYC10017

Heater harness

£0.90

£0.75 ex. VAT

each x

USE ZKC6918

Product Code: ZKC5132

BLOWER MOTOR RV8 - NLA

Product Code: ZKC6918

SET SCREW BLACK

Product Code: SE105105

Motor and fan to heater

£0.12

£0.10 ex. VAT

each x

USE ZKC6916

Product Code: BMU2772

Has been superseded by

HEATER BOX GASKET RV8

Product Code: ZKC6916

£5.94

£4.95 ex. VAT

each x

HEATER BOX GASKET RV8

Product Code: ZKC6916

Heater to body

£5.94

£4.95 ex. VAT

each x

HEATER BOX GASKET RV8

Product Code: ZKC6915

Heater rear

£3.54

£2.95 ex. VAT

each x

SEAL BLOWER INLET

Product Code: ZKC5106

£23.94

£19.95 ex. VAT

each x

SCREW

Product Code: AZ610071

Heater to body

£0.16

£0.13 ex. VAT

each x

WASHER -PLAIN

Product Code: WC105001

Heater to body

£0.12

£0.10 ex. VAT

each x

NUT FLANGED RV8

Product Code: FN105045

Heater top fxing

£0.18

£0.15 ex. VAT

each x

DUCT HEATER BOX TO FACE VENTS

Product Code: ZKC5141

£3.61

£3.01 ex. VAT

each x

SEAL-DUCT (HEATER BOX TO FACE VENTS)

Product Code: ZKC5138

£17.94

£14.95 ex. VAT

each x

SEAL - DEMISTS

Product Code: ZKC5112

£5.94

£4.95 ex. VAT

each x

HEATSHIELD HEATER RV8

Product Code: ZKC5136

£47.94

£39.95 ex. VAT

each x

SCREW

Product Code: SE105101

Heatshield to heater

£0.24

£0.20 ex. VAT

each x

HEATER VALVE RV8

Product Code: ZKC5119

£71.96

£59.97 ex. VAT

each x

USE ZKC5119

Product Code: ZKC5119Z

Has been superseded by

HEATER VALVE RV8

Product Code: ZKC5119

£71.96

£59.97 ex. VAT

each x

USE ZKC5102

Product Code: GRH1320

Has been superseded by

HEATER HOSE RV8

Product Code: ZKC5102

£35.94

£29.95 ex. VAT

each x

HEATER HOSE RV8

Product Code: ZKC5102

£35.94

£29.95 ex. VAT

each x

USE ZKC5100

Product Code: GRH1319

Has been superseded by

HOSE - HEATER FEED

Product Code: ZKC5100

£19.14

£15.95 ex. VAT

each x

HOSE - HEATER FEED

Product Code: ZKC5100

£19.14

£15.95 ex. VAT

each x

HEATING HOSE RV8

Product Code: GRH1318

£21.54

£17.95 ex. VAT

each x

CLIP - HEATER HOSES

Product Code: CN100258

Quantity for this = 5

CLIP - HOSE RETURN ENGINE

Product Code: CN100308

Quantity for this = 1

HEATER DRAIN MGB C RV8

Product Code: AHC321

£23.94

£19.95 ex. VAT

each x

USE AHC321

Product Code: ZKC5111

Has been superseded by

HEATER DRAIN MGB C RV8

Product Code: AHC321

£23.94

£19.95 ex. VAT

each x

Products not on diagram

BOLT CONDENSOR RV8

Product Code: ZKC6968

£0.54

£0.45 ex. VAT

each x
