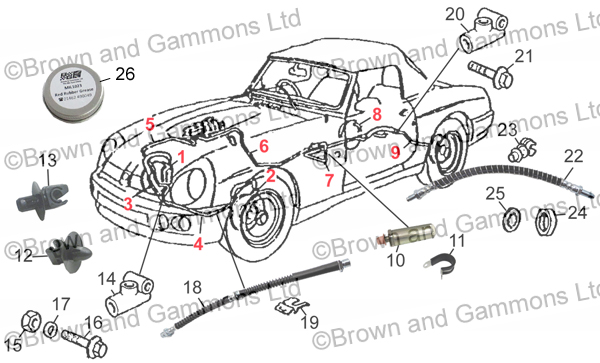

Brake Pipes

Image for Brake Pipes

Item

Description

Action

1
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

Caliper to hose RH. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

2
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

Caliper to hose LH. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

3
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

3 way connector to hose - front RH. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

4
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

3 way connector to hose - front LH. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

5
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

Master cylinder to 3 way connector - front. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

6
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

Master cylinder to pressure valve - rear. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

7
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

Pressure valve to bracket. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

8
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

3 way connector to rear brake RH. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

9
Image for BUNDY TUBE BRAKE PIPE 3/16 INCH
BUNDY TUBE BRAKE PIPE 3/16 INCH

Product Code: GVP3001

3 way connector to rear brake LH. Sold in meters - quantity - as required

£3.85

£3.21

METRE x

10
Image for PRESSURE RELIEF VALVE RV8
PRESSURE RELIEF VALVE RV8

Product Code: NTC6868

£149.94

£124.95

each x

11
Image for CLIP VALVE TO BODY RV8
CLIP VALVE TO BODY RV8

Product Code: NTC5027

£2.26

£1.88

each x

12
Image for CLIP - BRAKES - RV8
CLIP - BRAKES - RV8

Product Code: EDP7037

Clip brake pipe to body

£2.52

£2.10

each x

13
Image for CLIP - BRAKE PIPE TO FRONT CROSSMEMBER RV8
CLIP - BRAKE PIPE TO FRONT CROSSMEMBER RV8

Product Code: NTC9543

Clip - brake pipe to front crossmember

£1.50

£1.25

each x

14
Image for CONNECTOR -  3 WAY REAR AXLE RV8
CONNECTOR - 3 WAY REAR AXLE RV8

Product Code: ADU9562

Connector - 3 way - front brake pipes

£15.66

£13.05

each x

15
Image for Nut M6
Nut M6

Product Code: FX106041

Nut - bolt to connector

£0.54

£0.45

each x

16
Image for BOLT
BOLT

Product Code: FB106071

£0.60

£0.50

each x

16
Image for Bolt Flanged HEX set
Bolt Flanged HEX set

Product Code: FB106071SS

£0.90

£0.75

each x

17
Image for SPACER - BRAKES - RV8
SPACER - BRAKES - RV8

Product Code: DAM6450

18
Image for FRONT BRAKE HOSE - RV8
FRONT BRAKE HOSE - RV8

Product Code: GBH90278

Caliper to pipe

£29.84

£24.86

each x

19
Image for CLIP - FRONT BRAKE HOSE RV8
CLIP - FRONT BRAKE HOSE RV8

Product Code: ADU6221

Clip - front brake hose to body and caliper to bracket

£0.78

£0.65

each x

20
Image for CONNECTOR -  3 WAY REAR AXLE RV8
CONNECTOR - 3 WAY REAR AXLE RV8

Product Code: ADU9562

Connector - 3 way - rear axle

£15.66

£13.05

each x

21
Image for SCREW RV8
SCREW RV8

Product Code: FS106251

Screw - connector to bracket

£0.18

£0.15

each x

22
Image for BRAKE HOSE - REAR - RV8
BRAKE HOSE - REAR - RV8

Product Code: GBH90279

£28.16

£23.46

each x

22
Image for USE GBH90279
USE GBH90279

Product Code: ZKC5777

Has been superseded by
Image for BRAKE HOSE - REAR - RV8
BRAKE HOSE - REAR - RV8

Product Code: GBH90279

£28.16

£23.46

each x

23
Image for Brake pipe clip 3/16
Brake pipe clip 3/16

Product Code: GHF1192

Clip - brake pipe to axle bracket

£0.36

£0.30

each x

24
Image for NUT -  M10 HALF REAR BRAKE PIPE
NUT - M10 HALF REAR BRAKE PIPE

Product Code: FAM3658

£0.78

£0.65

each x

26
Image for SHAKEPROOF WASHER
SHAKEPROOF WASHER

Product Code: WF110001

Brake pipe nut

£0.12

£0.10

each x

26
Image for USE MIL1023
USE MIL1023

Product Code: GAC2020

Has been superseded by
Image for Red Rubber Grease in 15 gram Tin
Red Rubber Grease in 15 gram Tin

Product Code: MIL1023

£3.54

£2.95

KIT x

26
Image for Red Rubber Grease in 15 gram Tin
Red Rubber Grease in 15 gram Tin

Product Code: MIL1023

£3.54

£2.95

KIT x

Products not on diagram

Image for CATCH RV8
CATCH RV8

Product Code: EDP7038

£1.14

£0.95

each x

Image for SWITCH - STOP LAMP  - RV8
SWITCH - STOP LAMP - RV8

Product Code: XKB10003

£32.02

£26.68

each x
