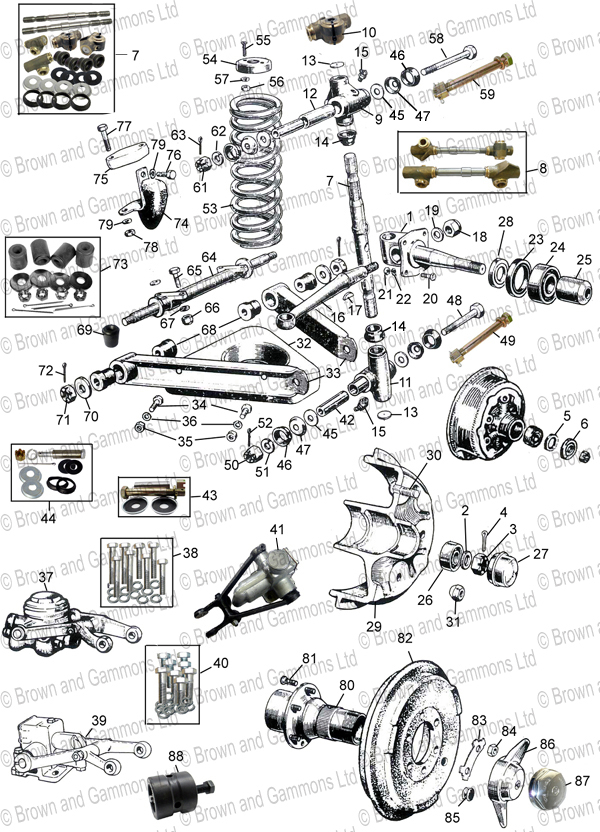

Front suspension

Front suspension
The following changes occured during the TD production to the front suspension:

At TD4251 the hub and brake drumassembly was changed from a seperate drum screwed to the hub to a one piece casting.

At TD6035 the front wheel bearing grease retainer was changed for a flet wash to a pressed on steel cap with corresponsing change to the hbu casting

At TD12284 the steeriung knuckles, wheel studs and various other parts were changed from BSF threads to UNF thread

Item

Description

Action

RETAINING WASHER 5/8 INCH ID

Product Code: 101258

£3.54

£2.95 ex. VAT

each x

RETAINING WASHER 3/4 INCH ID

Product Code: ATB4069

£4.80

£4.00 ex. VAT

each x

HUB BRG NUT LH THREAD 5/8 INCH BSF

Product Code: AJD8310N

£18.11

£15.09 ex. VAT

each x

HUB BRG NUT RH THREAD 5/8 INCH BSF

Product Code: AJD8410N

£11.10

£9.25 ex. VAT

each x

NUT LH 3/4 INCH F/SUS LATE TD/F A

Product Code: FNN2412

£8.34

£6.95 ex. VAT

each x

NUT RH 3/4 INCH F/SUS LATE TDTF A

Product Code: FNN412

£4.50

£3.75 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

£0.22

£0.18 ex. VAT

Pack of 10 x

FELT GREASE SEAL TD FRONT

Product Code: 53853

£9.30

£7.75 ex. VAT

each x

SHOCKER KIT LH T TYPE

Product Code: ACG4023BLH

Has been superseded by

Swivel pin & link set TD/TF to fit MGB Shocks

Product Code: ATB4218-9SP

£510.00

£425.00 ex. VAT

KIT x

SHOCKER KIT RH T TYPE

Product Code: ACG4023BRH

Has been superseded by

Swivel pin & link set TD/TF to fit MGB Shocks

Product Code: ATB4218-9SP

£510.00

£425.00 ex. VAT

KIT x

Swivel pin & link set TD/TF to fit MGB Shocks

Product Code: ATB4218/9SP

Has been superseded by

Swivel pin & link set TD/TF to fit MGB Shocks

Product Code: ATB4218-9SP

£510.00

£425.00 ex. VAT

KIT x

SWIVEL PIN RH TD TF MGA

Product Code: ATB4218

£87.54

£72.95 ex. VAT

each x

SWIVEL PIN LH TD TF MGA

Product Code: ATB4219

£87.54

£72.95 ex. VAT

each x

USE STN3002

Product Code: ATB4218K

Has been superseded by

MODIFIED SWIVEL PIN & LINK SET TD/TF MGA

Product Code: STN3002

£594.00

£495.00 ex. VAT

PAIR x

USE STN3002

Product Code: ATB4219K

Has been superseded by

MODIFIED SWIVEL PIN & LINK SET TD/TF MGA

Product Code: STN3002

£594.00

£495.00 ex. VAT

PAIR x

MODIFIED SWIVEL PIN & LINK SET TD/TF MGA

Product Code: STN3002

£594.00

£495.00 ex. VAT

PAIR x

MGA TD TF RH Top Trunnion

Product Code: ATB4208

£113.94

£94.95 ex. VAT

each x

MGA TD TF LH Top Trunnion

Product Code: ATB4209

£113.94

£94.95 ex. VAT

each x

SWIVEL LINK RH TOP TD/TF (MGB Dampers)

Product Code: ATB4208SP

£114.00

£95.00 ex. VAT

Each

MGA TD TF RH Lower Trunnion

Product Code: ATB4212

£113.94

£94.95 ex. VAT

each x

MGA TD TF LH Lower Trunnion

Product Code: ATB4213

£113.94

£94.95 ex. VAT

each x

BUSH KING PIN LOWER MGB TYP A

Product Code: BTB768

Ream to 0.75" after fitting

£8.88

£7.40 ex. VAT

each x

PLUG TRUNNION/PIN MGA TF TD

Product Code: ACA4010

£1.08

£0.90 ex. VAT

each x

PLUG TRUNNION/PIN MGA TF TD

Product Code: ACA4010

£1.08

£0.90 ex. VAT

each x

SEAL TRUNNION/PIN MGA TF TD

Product Code: ACG4030

£4.20

£3.50 ex. VAT

each x

SEAL TRUNNION/PIN MGA TF TD

Product Code: ACG4030

£4.20

£3.50 ex. VAT

each x

90 DEG GREASE NIPPLE

Product Code: UHN405

£2.48

£2.07 ex. VAT

each x

90 DEG GREASE NIPPLE

Product Code: UHN405

£2.48

£2.07 ex. VAT

each x

Steering arm RH TD TF used

Product Code: 136019

£210.00

£175.00 ex. VAT

each x

Steering arm LH TD TF Used

Product Code: 136020U

£210.00

£175.00 ex. VAT

each x

Woodruff key steering arm to stub axle

Product Code: WKN506

£1.14

£0.95 ex. VAT

each x

NUT STEERING ARM

Product Code: 500109

£5.40

£4.50 ex. VAT

each x

PLAIN WASHER 1/2 INCH

Product Code: GHF304

£0.17

£0.14 ex. VAT

each x

NUT 3/8 INCH BSF x 5/16 INCH WHIT

Product Code: AJD8106

£0.42

£0.35 ex. VAT

each x

SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

£0.18

£0.15 ex. VAT

Pack of 10 x

OIL SEAL FRONT HUB TD TF MGA

Product Code: ACF4004

£3.30

£2.75 ex. VAT

each x

HUB BRG INNER FRT TD/TF MGA

Product Code: 6306

£12.78

£10.65 ex. VAT

each x

SPACER FRT HUB BRG MGA TD/TF

Product Code: ACF4003

£12.67

£10.56 ex. VAT

each x

USED SPACER FRONT HUB

Product Code: ACF4003U

£7.20

£6.00 ex. VAT

each x

TD-TF Y MGA Front wheel bearing small

Product Code: 6304

£10.74

£8.95 ex. VAT

each x

GREASE CAP FRONT HUB

Product Code: ATB4098

£8.99

£7.49 ex. VAT

each x

SPACER STUB AXLE MGA TD/TF

Product Code: ACF4001

£13.08

£10.90 ex. VAT

each x

USED BRAKE DRUM TD

Product Code: ACF4007

WHEEL STUD 1/2 INCH UNF TD & TF

Product Code: ATB4097

£11.93

£9.94 ex. VAT

each x

WHEEL STUD-1/2 INCH BSF EARLY TD

Product Code: ATB4162

£10.02

£8.35 ex. VAT

each x

WHEEL NUT UNF TD 12285 ON & TF

Product Code: ATB4100

£4.56

£3.80 ex. VAT

each x

Wheel nut BSF TD to chassis no 12284

Product Code: ATB4163

£6.36

£5.30 ex. VAT

each x

USE AHH5925

Product Code: 126905

Has been superseded by

FRT SPRING PAN MGB MGA TTYPE

Product Code: AHH5925

£27.42

£22.85 ex. VAT

each x

FRT SPRING PAN MGB MGA TTYPE

Product Code: AHH5925

£27.42

£22.85 ex. VAT

each x

WISHBONE ARM MGB MGA TD TF

Product Code: AAA1326

£10.41

£8.67 ex. VAT

each x

SET SCREW 5/16 inch BSF x 1.0 inch

Product Code: AJD6208

£1.14

£0.95 ex. VAT

each x

NUT 5/16 INCH BSF HEX

Product Code: AJD8105

£0.30

£0.25 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

USE 136023E

Product Code: 136023

Has been superseded by

REBUILD-TD GIRLING FRONT SHOCK - COU

Product Code: 136023E

£215.94

£179.95 ex. VAT

each x

REBUILD-TD GIRLING FRONT SHOCK - COU

Product Code: 136023E

£215.94

£179.95 ex. VAT

each x

Bolt kit Girling TD early damper

Product Code: TD1070

£29.09

£24.24 ex. VAT

KIT x

RECON TD/F ARMSTRONG FRONT*200*

Product Code: ACG4023E

£175.14

£145.95 ex. VAT

each x

METALSPRAY SHAFT & BUSH BODY

Product Code: ACG4023X

£90.00

£75.00 ex. VAT

each x

Bolt kit Front damper MGA TF/late TD

Product Code: TF70

£16.54

£13.78 ex. VAT

KIT x

MGB New front Damper

Product Code: GSA119N

Use ATB4218/9SP kit for these

£195.56

£162.97 ex. VAT

each x

DISTANCE TUBE KG/PIN/TRUNNION

Product Code: BHH1773

£5.16

£4.30 ex. VAT

each x

BTM TRUNNION BOLT KIT MGB/A/T

Product Code: BHH1773K

£10.74

£8.95 ex. VAT

KIT x

TOP TRUNNION BOLT KIT MGA/TD/F

Product Code: BHH1773KA

£16.98

£14.15 ex. VAT

KIT x

THRUST WASHER MGB MGA TD TF

Product Code: AAA1390

£1.14

£0.95 ex. VAT

each x

THRUST WASHER MGB MGA TD TF

Product Code: AAA1390

£1.14

£0.95 ex. VAT

each x

SEAL FRT TRUNNION MGB A TD/TF

Product Code: AAA1323

Has been superseded by

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

SEAL FRT TRUNNION MGB A TD/TF

Product Code: AAA1323

Has been superseded by

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

Dust seal Neoprene (each)

Product Code: AAA1323X

£2.46

£2.05 ex. VAT

each x

SEAL SUPPORT MGB MGA TD TF

Product Code: AAA1324

£1.08

£0.90 ex. VAT

each x

SEAL SUPPORT MGB MGA TD TF

Product Code: AAA1324

£1.08

£0.90 ex. VAT

each x

USE AHH4001K

Product Code: AHH4001

Has been superseded by

MGB-A-TD-TF Lower suspension bolt

Product Code: AHH4001K

£5.04

£4.20 ex. VAT

each x

MGB-A-TD-TF Lower suspension bolt

Product Code: AHH4001K

£5.04

£4.20 ex. VAT

each x

FULL NUT SLOTTED 1/2 INCH UNF

Product Code: ND608041

£1.14

£0.95 ex. VAT

each x

SPRING WASHER 1/2 INCH

Product Code: GHF335

£0.24

£0.20 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

£0.22

£0.18 ex. VAT

Pack of 10 x

TD-TF MGA Front coil spring (each)

Product Code: 139105

£39.00

£32.50 ex. VAT

each x

FRONT SPRING SPIGOT B A T

Product Code: AHH5897

£17.00

£14.17 ex. VAT

each x

NUT 1/4 INCH UNF (PACK OF 10)

Product Code: GHF200

£0.24

£0.20 ex. VAT

Pack of 10 x

STAINLESS STEEL 1/4 UNF NUT

Product Code: GHF200SS

£0.18

£0.15 ex. VAT

each x

SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

£0.10

£0.08 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

£0.12

£0.10 ex. VAT

each x

USE AHH4002K

Product Code: AHH4002

Has been superseded by

MGA TD TF Top trunnion bolt

Product Code: AHH4002K

£11.04

£9.20 ex. VAT

each x

MGA TD TF Top trunnion bolt

Product Code: AHH4002K

£11.04

£9.20 ex. VAT

each x

FULL NUT SLOTTED 1/2 INCH UNF

Product Code: ND608041

£1.14

£0.95 ex. VAT

each x

SPRING WASHER 1/2 INCH

Product Code: GHF335

£0.24

£0.20 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

£0.22

£0.18 ex. VAT

Pack of 10 x

MGB MGA TD-TF Inner wishbone pivot (UNF threads)

Product Code: AHH4003

£35.10

£29.25 ex. VAT

each x

USE BTB198

Product Code: ACB5255

Has been superseded by

BOLT - BRAKE DISC TO HUB MGB A

Product Code: BTB198

£1.14

£0.95 ex. VAT

each x

BOLT - BRAKE DISC TO HUB MGB A

Product Code: BTB198

£1.14

£0.95 ex. VAT

each x

NYLOC NUT 3/8 INCH UNF (PACK 10)

Product Code: GHF223

£0.24

£0.20 ex. VAT

Pack of 10 x

Nut 3/8 metal locking type H/T

Product Code: LNZ106

£1.43

£1.19 ex. VAT

each x

SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

£0.18

£0.15 ex. VAT

Pack of 10 x

BUSH INNER WISHBONE MGB A T

Product Code: AHH7933

£0.78

£0.65 ex. VAT

each x

WISHBONE ARM BUSH MGB V8 TYPE

Product Code: BHH1123

£1.74

£1.45 ex. VAT

each x

INNER PIVOT WASHER B A TD TF

Product Code: AAA1330

£1.34

£1.12 ex. VAT

each x

NUT SLOTTED 1/2 INCH BSF HEX ZINC

Product Code: AJD8408Z

Fits original pivot

£1.94

£1.62 ex. VAT

each x

HALF NUT SLOTTED 1/2 INCH UNF

Product Code: NL608041

Fits replacement pivot

£1.06

£0.88 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

£0.22

£0.18 ex. VAT

Pack of 10 x

V8 TYPE INNER WISHBONE BUSH KIT

Product Code: STN101

£14.70

£12.25 ex. VAT

KIT x

BUMP STOP FRONT MGA TD TF

Product Code: AAA5023

£10.68

£8.90 ex. VAT

each x

BUMP STOP SPACER

Product Code: AAA5024

£4.44

£3.70 ex. VAT

each x

BOLT 5/16 INCH BSF x 1.5 INCH

Product Code: AJD6212

£2.52

£2.10 ex. VAT

each x

NUT 5/16 INCH BSF HEX

Product Code: AJD8105

£0.30

£0.25 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

TD TF MGA 1500 RH Front hub drum brakes

Product Code: ATB4180

£113.40

£94.50 ex. VAT

each x

TD TF MGA1500 Front hub LH drum brakes

Product Code: ATB4181

£113.40

£94.50 ex. VAT

each x

STUD BRAKE DRUM TF MGA

Product Code: ATB4124

£3.72

£3.10 ex. VAT

each x

BRAKE DRUM FOR W/WHEELS TD-TF

Product Code: AAA1111

£73.00

£60.83 ex. VAT

each x

LOCKTAB BRAKE DRUM MGA TF

Product Code: ATB4125

£2.69

£2.24 ex. VAT

each x

LOCK NUT 3/8 INCH UNF HEX

Product Code: NT606041

£0.66

£0.55 ex. VAT

each x

RUBBER PLUG - TD TF BRAKE DRUM

Product Code: ACG5012

£6.48

£5.40 ex. VAT

each x

12TPI Knock-on eared RH MGA & T (no logo)

Product Code: AHH7317

£31.44

£26.20 ex. VAT

each x

12TPI Knock-on eared RH MGA & T (With logo)

Product Code: AHH7317MG

£31.44

£26.20 ex. VAT

each x

12TPI Knock-on eared LH MGA & T (No logo)

Product Code: AHH7318

£31.44

£26.20 ex. VAT

each x

12TPI Knock-on eared' LH MGA & T (With logo)

Product Code: AHH7318MG

£31.42

£26.19 ex. VAT

each x

12TPI KNOCK-ON NUT TYPE RH

Product Code: AHH7315

£31.80

£26.50 ex. VAT

each x

12TPI KNOCK-ON NUT TYPE RH 'MG'

Product Code: AHH7315MG

£31.80

£26.50 ex. VAT

each x

12TPI KNOCK-ON NUT TYPE LH

Product Code: AHH7316

£31.80

£26.50 ex. VAT

each x

12TPI KNOCK-ON NUT TYPE LH 'MG'

Product Code: AHH7316MG

£31.80

£26.50 ex. VAT

each x

42mm 8TPi Hub Puller tool

Product Code: 42MMHUBTOOL

£144.00

£120.00 ex. VAT

each x

Products not on diagram

BUSH WISHBONE COMPETITION MGAB

Product Code: AHH7933C

£5.99

£4.99 ex. VAT

each x

PENRITE SHOCK OIL NO1 500M

Product Code: GGL9038X

£7.20

£6.00 ex. VAT

each x

Stub Axle 5/8 BSF RH TD/TF (used)

Product Code: 136021U

£210.00

£175.00 ex. VAT

each x

Stub axle 5/8 BSF LH TD TF (Used)

Product Code: 136022U

£210.00

£175.00 ex. VAT

each x

Swivel pin & link set TD/TF to fit MGB Shocks

Product Code: ATB4218-9SP

£510.00

£425.00 ex. VAT

KIT x

TD/TF/MGA front wheel bearing kit

Product Code: GHK2001

£43.80

£36.50 ex. VAT

KIT x

V8 TYPE INNER WISHBONE BUSH KIT BSF thread

Product Code: STN101BSF

£17.58

£14.65 ex. VAT

KIT x

SWIVEL LINK LH TOP TD/TF (MGB Dampers)

Product Code: ATB4209SP

£114.00

£95.00 ex. VAT

Each

Front suspension

Item

Description

Action

Products not on diagram

Basket

Quick Search

Front suspension

Item

Description

Action

Products not on diagram

Basket

Quick Search

Get Notification
